Vero Monitor Service

The VMS master is the central control plane for Vero Monitor Service.

Operating System Requirement: The VMS Master runs on Kubernetes (K3s) and only supports the Linux operating system (Ubuntu, CentOS, RHEL, Debian). Trialling or installing the Master on Windows is not supported.

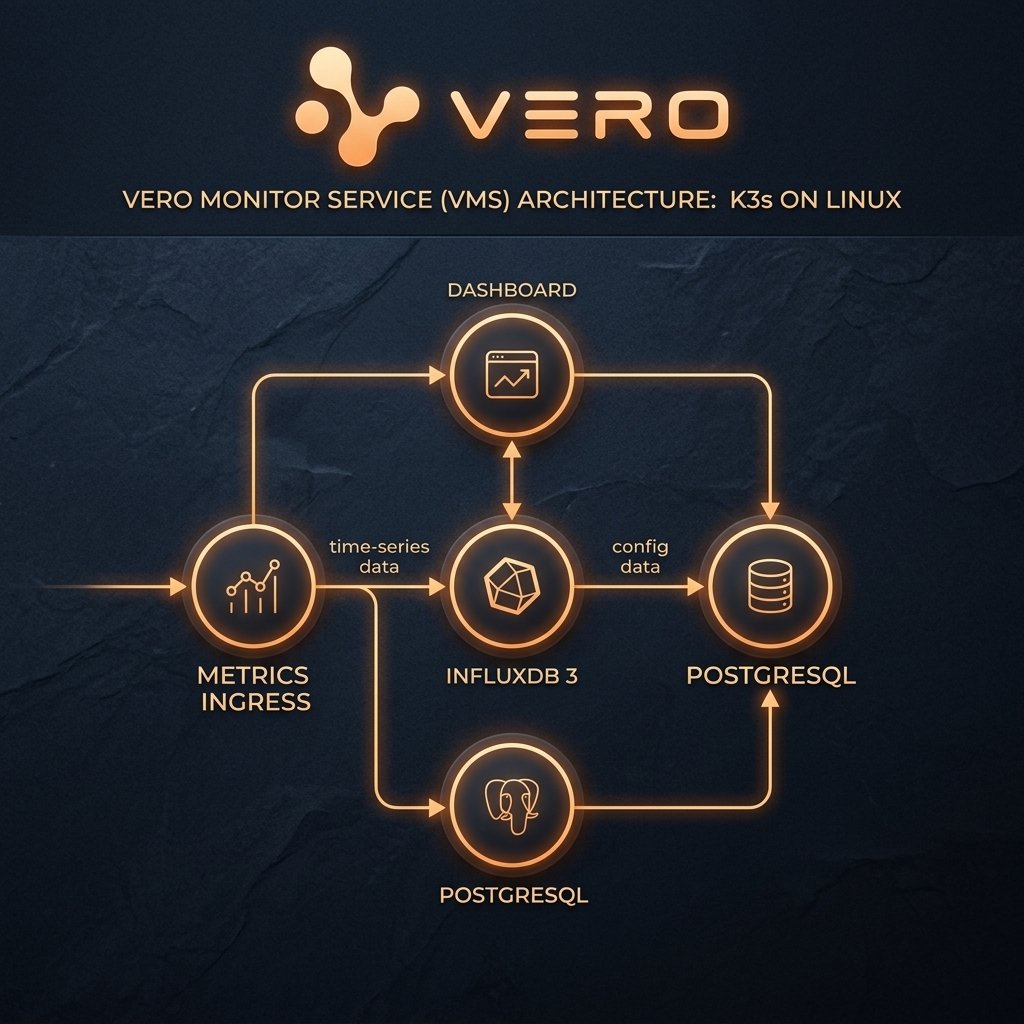

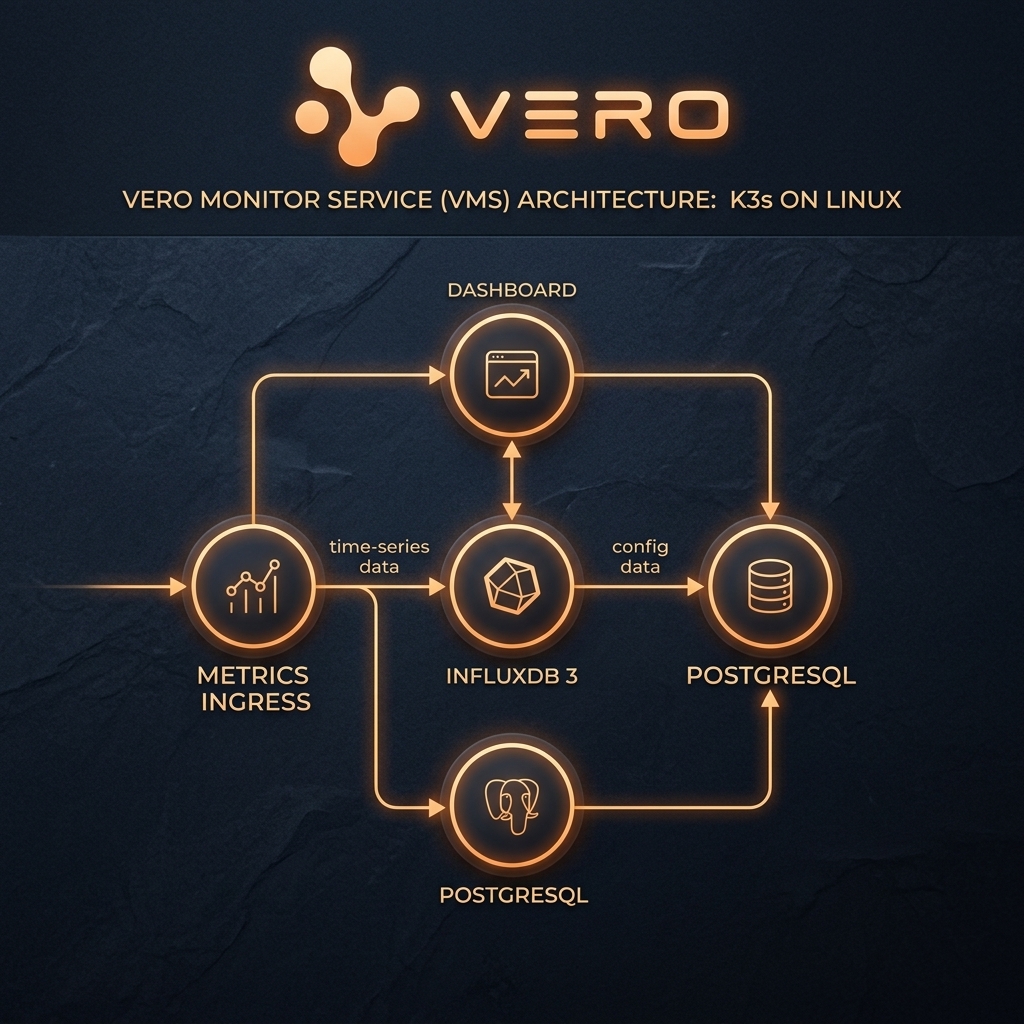

Master Architecture on K3s (Linux)

Below is the conceptual architecture of the VMS Master components running on a Linux K3s cluster:

Component	Kubernetes Object	Role
`postgres-internal`	Deployment, Service, PVC, Secret	Catalog DB, stores agent/probe configurations, auth, and metadata
`postgrest`	Deployment, Service	Internal REST API layer for dashboard and services to read catalogs
`influxdb3`	Deployment, Service, PVC, Secret	Stores time-series metrics and logs (`vms_timeseries`, `vms_logs`)
`vms-metrics-ingress`	Deployment, Service, Ingress	Handles metric ingestion and serves configuration files to agents
`vms-dashboard`	Deployment, Service, Ingress	Web UI Dashboard for operations and administration
`vms-checker-svc`	Deployment, Service	Conducts active readiness and dependency health checks
`vms-synthetic-svc`	Deployment, Service	Runs preconfigured synthetic user flows
`vms-alert-agent`	Deployment	Evaluates alert rules and routes alerts

Prerequisites (Master)

Prerequisite	Description
OS	Linux (Ubuntu 22.04 LTS or RHEL 9+ recommended)
K3s / K8s	Kubernetes cluster with a default StorageClass configured
Domain	Domain pointing to the K3s server (e.g., `vms.verolabs.co` and `ingest.vms.verolabs.co`)
GitOps Repo	Clone repository `vms-gitops` to your deployment server

Deployment Flow (Step - Check - Result)

The VMS Master stack is fully packaged and automated via Kustomize. You can deploy the whole stack in a single command or apply layers in sequence:

1. Initialize Namespace and Bootstrap Secrets

Step: Create the vms namespace and apply the bootstrap layer to automatically generate TLS certs, Influx tokens, and agent service keys.
kubectl apply -f namespace.yaml kubectl apply -k bootstrap

Check: Monitor the bootstrap job and secrets status:

kubectl get job vms-bootstrap -n vms
kubectl get secrets -n vms

Result: The vms-bootstrap job ends with status Completed. Secrets vms-metrics-ingress-secret and influxdb3-secret are created.

2. Deploy Data Plane (PostgreSQL & InfluxDB 3)

Step: Deploy PostgreSQL and InfluxDB 3 databases. The system automatically launches schema initialization and database provisioning jobs (vms-pg-schema-load and influxdb3-create-db).
kubectl apply -k infra

Check: Verify database pods are running and setup jobs completed:

kubectl get pods -n vms -l app.kubernetes.io/part-of=vms-data-plane
kubectl get jobs -n vms -l app=vms-pg-schema-load
kubectl get jobs -n vms -l app=influxdb3-create-db

Result: postgres-internal and influxdb3 pods show Running (1/1). Database setup and schema load jobs show Completed.

3. Deploy Core Services and Ingress Routes

Step: Apply core VMS services (Ingress, Dashboard, Checker, Synthetic, Alert). Pod migrations are executed automatically during start-up.

kubectl apply -k services/metrics-ingress
kubectl apply -k services/dashboard
kubectl apply -k services/checker-svc
kubectl apply -k services/synthetic-svc
kubectl apply -k services/alert-agent

(Or deploy the whole stack in one command: kubectl apply -k . from root)

Check: Verify service readiness and test the HTTPS Ingress endpoint:

kubectl wait --for=condition=Ready pod -l app=vms-metrics-ingress -n vms --timeout=120s
curl -k https://ingest.vms.verolabs.co/healthz

Result: All pods display Running. The curl request returns 200 OK with JSON {"status":"healthy"}.

4. Retrieve Agent Ingest API Key

Step: Extract the auto-minted service API key from the secret:
kubectl get secret vms-ingest-svc-key -n vms -o jsonpath='{.data.apikey}' | base64 -d
Note: If you need to generate separate custom keys for specific agents, configure and run services/metrics-ingress/create-key-job.yaml.
Check: Verify the printed string is a random key hash.
Result: The secure agent key vms_agent_... is printed. Save it to configure VMS Agent connections.

Acceptance Criteria

1. Success Criteria

All pods in the vms namespace show Running or Completed.
Ingress resolves with valid SSL Certs (no client certificate or x509 validation errors).
Dashboard is accessible and operators can log in.

2. Failure Signals & Troubleshooting

Pod is Pending: Indicates resource constraints or storage volume mounting failures.
- Fix: Run kubectl describe pod <pod-name> -n vms to inspect.
Pod displays CrashLoopBackOff: Caused by bad configuration, missing secrets, or database connection refusals.
- Fix: Check the previous logs with kubectl logs <pod-name> -n vms --previous.
401 Unauthorized errors: Mismatched or non-existent API keys.
- Fix: Re-run the key generator and ensure the database auth entries are correct.
